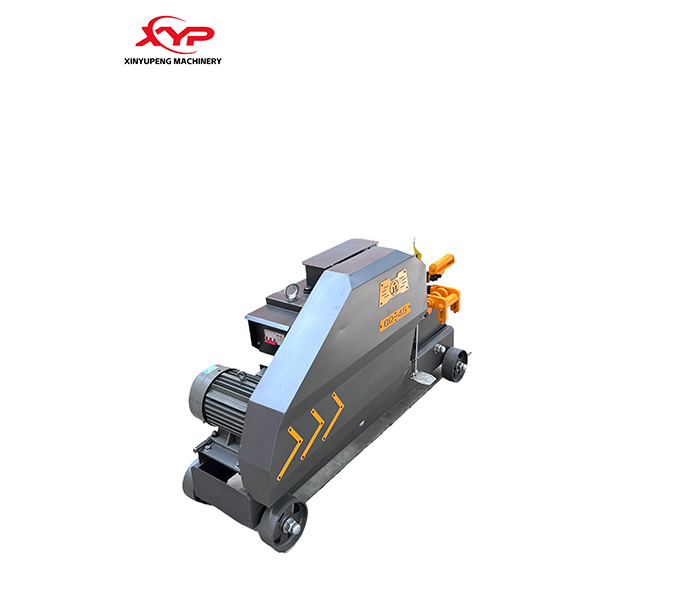

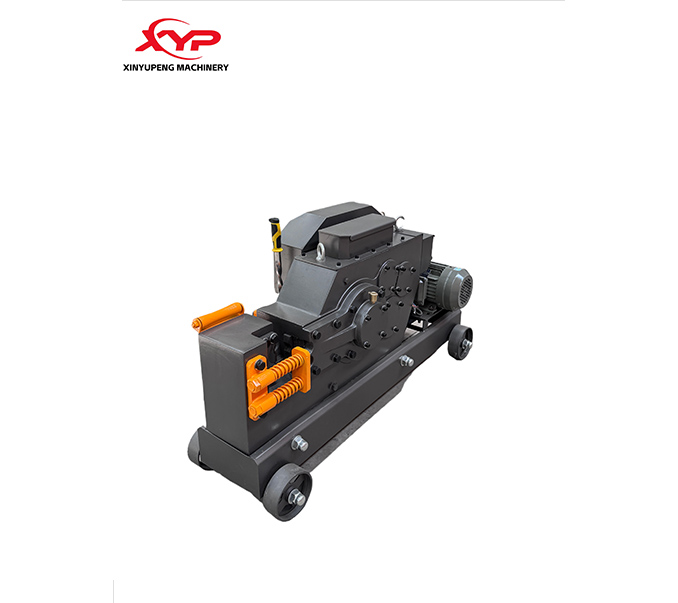

steel bar cutting machine

GQ40

• • Cutting capacity: 6-32mm(ob≤450N/mm²)
  • Rated for long hours: 6-28mm(ob≤650N/mm²)
  • Continuous cutting times: 32times/min
  • Motor power: 2.2kw-2P
  • Motor rotation speed: 2880r/min
  • Net weight: 310kg
  • Oil volume: 8L
  • LWH: 1325×440×835mm

GQ45

• Cutting capacity: 6-36mm(ob≤450N/mm²)
• Rated for long hours: 6-32mm(ob≤650N/mm²)
• Continuous cutting times: 32times/min
• Motor power: 3kw-2P
• Motor rotation speed: 2880r/min
• Net weight: 380kg
• Oil volume: 8L
• LWH: 1400×440×835mm

GQ50

• Bending capacity: 6-40mm(ob≤450N/mm²)
• Rated for long hours: 6-36mm(ob≤650N/mm²)
• Continuous cutting times: 32times/min
• Motor power: 4kw-2P
• Motor rotation speed: 2880r/min
• Net weight: 470kg
• Oil volume: 12L
• LWH: 1420×480×820mm

GQ55

• Bending capacity: 6-45mm(ob≤450N/mm²)
• Rated for long hours: 6-40mm(ob≤650N/mm²)
• Continuous cutting times: 32times/min
• Motor power: 4kw-2P
• Motor rotation speed: 2880r/min
• Net weight: 530kg
• Oil volume: 12L
• LWH: 1560×510×820mm
